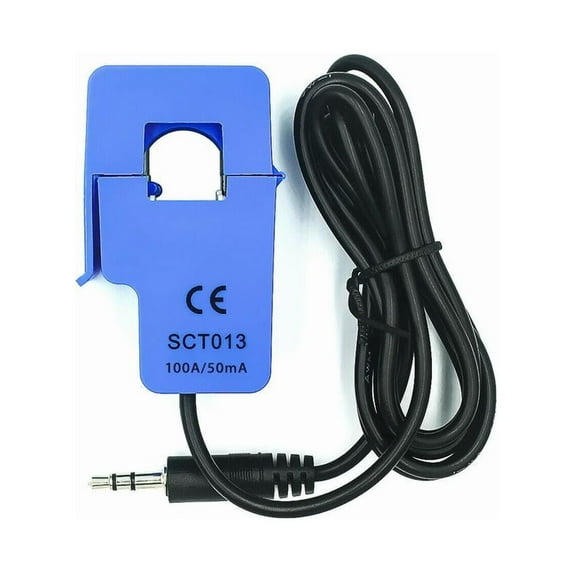

20/30/50/100A Sct-013 Non-Invasive Ac Current Sensor Split Core Transformer 100A Smile Home

Product description:

brand new high quality
Made of high-quality materials for durability
A non-intrusive current transformer, build your energy monitor with this sensor clip.
Optional specifications: 20/30/50/100A

Model: SCT-013-020
Reference project: OpenEnergyMonitor
Other reference projects: How do I monitor power
Core material: ferrite
External Material: Plastic
Input current: 0A-20A
Output current: 0-1V
Opening size: 13 x 13mm
Output : 3.5mm
Dielectric strength: 6000V AC/1min
Operating temperature: -25-70°C
Cable length: 1.0m
Flame retardant grade: UL94-V0
Mechanical strength: >500(20°C)

Model: SCT-013-030
Reference project: OpenEnergyMonitor
Other reference projects: How do I monitor power
Core material: ferrite
External Material: Plastic
Input current: 0A-30A
Opening size: 13 x 13mm
Output : 3.5mm
Dielectric strength: 6000V AC/1min
Operating temperature: -25-70°C
Cable length: 1.5m
Flame retardant grade: UL94-V0
Mechanical strength: >500(20°C)

Model: SCT-013-050
Rated input current: 50A
Rated input voltage: 1V
Output : 3.5mm
Operating temperature: -25-70°C
Dielectric strength: 6000V AC/1min
Cable length: 1M/3.3Ft
Opening Size: 13 x 13mm/0.5" x 0.5"(L*W)
Overall Dimensions: 5.7 x 3.2 x 2.2cm/2.2" x 1.2" x 0.87"(L*W*H)
Housing material: plastic
Core material: ferrite

Model: SCT-013-000/100A
Applicable to: lighting equipment, AC motors, air compressors,
Monitoring: current measurement and protection
Comply with: UL94-V0 flame retardant performance
Two forms of output current, voltage (voltage output built-in
sampling resistor)
Nonlinearity?%(10%-120% rated input current)
Model: SCT-013-000
Reference project: Open Energy Monitor
Core material: ferrite
Dielectric strength: 6000V AC/1min
Input current: 0A-100A
Flame retardant grade: UL94-V0
Mechanical strength: opening and closing times, not less than
1000 times (20 times?)
Opening Size: Approx. 0.51*0.51 inches/13x13mm
Dielectric strength: 6000V AC/1min
Working temperature: -25-70ò¾


Package list:

1 * Split core current transformer
