Hero image 0 of HiKaRiGuMi 700W Solar Grid Tie Micro Inverter IP65 Digital Control 17-50V Silver, 0 of 12

HiKaRiGuMi 700W Solar Grid Tie Micro Inverter IP65 Digital Control 17-50V Silver

(No ratings yet)

Key item features

- Premium Material: The inverter is made of aluminum alloy, which is durable, corrosion-resistant, and not easy to rust. You can use it for a long time without frequent replacement, and your cost can be saved.
- Digital Control: The inverter adopts intelligent soft switching technology, high-frequency switching power supply technology, and 32-bit DSP full digital SPWM control technology, making the product strong anti-interference ability, fast operation speed, high intelligence, and a powerful functional system, which can meet the needs of users.
- High Efficiency:The inverter has built-in high-precision maximum power point tracking, which can optimize the power collection from the solar panel, accurately capture and lock the maximum output power point, and greatly increase power generation to more than 25%. In addition, the efficient power reverse transmission technology can transmit the power that can not be used up to the grid in the reverse direction to other places for use, and the power transmission rate can reach 99.9%.
- Safety Guard: The inverter has six protection functions: over-temperature protection, under-voltage alarm, under-voltage protection, over-voltage protection, short circuit protection, overload protection, etc. Besides, the IP65 waterproof design can prevent rain from eroding its surface, so you can use it with confidence.
- Flexible Installation Mode:During installation, you can stack multiple inverters at will, form a single-phase parallel stacking system, or conveniently form a three-phase system to provide a three-phase AC.

Specs

Volts
110 V
Brand
HiKaRiGuMi
Features
Easy Installation
Has written warranty
No
Assembled product height
9.84"
Weight
3.59 lbs

Current price is $120.56

Price when purchased online

Free shipping
Free 30-day returns

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

2-Year Plan - $13.00

3-Year Plan - $18.00

How do you want your item?

Ships to

Arrives by Sat, May 30

Sold and shipped by Full Home Living

4.046082949308755 stars out of 5, based on 217 seller reviews(4.0)

Report an issue with this seller

Free 30-day returns

About this item

Product details

Description:

An inverter can efficiently turn the direct current generated by solar panels into the alternating current used by household appliances. This micro inverter makes it easier. Made of fine aluminum alloy, this IP65 waterproof inverter has a wide range of functions, good safety, convenient installation, and high-cost performance. We believe this inverter will not disappoint you.

Application:

This product is applicable to 30V or 36V solar panels, 36V batteries. The inverter can be widely used in residential or commercial areas for turning the direct current generated by solar panels into alternating current.

How to Use:

Step 1: Install the inverter on the support of the photovoltaic panel with the screws provided by the machine.
Step 2: Connect the positive and negative poles of the DC connection plug on the photovoltaic panel to the DC input terminal of the inverter.
Step 3: Open the waterproof cover of the AC output interface of the inverter and connect the AC cable to the AC waterproof plug.
Step 4: Connect the AC output cable to the AC main cable.
Step 5: Repeat steps 1 to 3 to install and connect all inverters.
Step 6: Connect the AC main cable to the public grid and start your green energy journey

Specification:

Model: WVC-700W
Color: Silver
Material: Aluminium Alloy
Power: 700W
Voltage: 110V
Plug Type: US Standard
Maximum Input DC Voltage: 54V
Peak Power Tracking Voltage: 22-45V
Operating Voltage Range: 17-50V
Min/Max Start-up Voltage: 22-50V
Maximum DC Short Circuit Current: 40A
Maximum Input Operating Current: 30A
Output Peak Power: 700watt
Rated Output Power: 650watt
Rated Output Current: 6.36A
Rated Voltage Range: 80-160VAC
Rated Frequency Range: 57-62.5Hz
Power Factor: ＞99％
Number of Circuit Connections Per String: 6
Static MPPT Efficiency: 99.5%
Maximum Output Efficiency: 91.2%
Night Time Power Loss: <1W
Total Flow Distortion: <5%
Operating Temperature Range: ﹣40℃~60℃/﹣40℉~140℉
Waterproof Rating: IP65
Cooling Method: Self-cooling
Communication Mode: Power Line Carrier
Power Transmission Mode: Reverse Transmission, Load Priority
Gross Weight: 2.48kg/5.47lbs
Net Weight: 1.63kg/3.59lbs
Product Size: 21.3*5.8*25cm/8.39*2.28*9.84inch
Package Size: 34*24*11.5cm/13.39*9.45*4.53inch

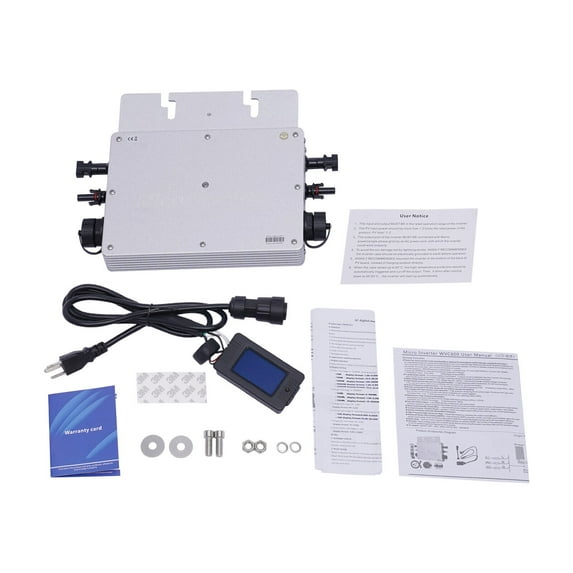

Package Included:

1* Solar Grid Tie Micro Inverter
1* Power Cord
1* English Manual
Other Accessories for Installation

- Premium Material: The inverter is made of aluminum alloy, which is durable, corrosion-resistant, and not easy to rust. You can use it for a long time without frequent replacement, and your cost can be saved.
- Digital Control: The inverter adopts intelligent soft switching technology, high-frequency switching power supply technology, and 32-bit DSP full digital SPWM control technology, making the product strong anti-interference ability, fast operation speed, high intelligence, and a powerful functional system, which can meet the needs of users.
- High Efficiency:The inverter has built-in high-precision maximum power point tracking, which can optimize the power collection from the solar panel, accurately capture and lock the maximum output power point, and greatly increase power generation to more than 25%. In addition, the efficient power reverse transmission technology can transmit the power that can not be used up to the grid in the reverse direction to other places for use, and the power transmission rate can reach 99.9%.
- Safety Guard: The inverter has six protection functions: over-temperature protection, under-voltage alarm, under-voltage protection, over-voltage protection, short circuit protection, overload protection, etc. Besides, the IP65 waterproof design can prevent rain from eroding its surface, so you can use it with confidence.
- Flexible Installation Mode:During installation, you can stack multiple inverters at will, form a single-phase parallel stacking system, or conveniently form a three-phase system to provide a three-phase AC.
