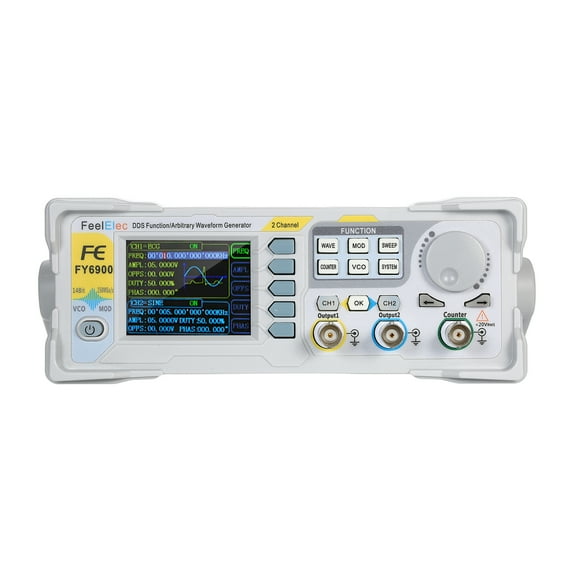

100MHz Function Signal Generator High Precision Digital DDS Dual-channel Function Signal/Arbitrary Waveform Generator Pulse Signal Source 300MSa/s Frequency Meter VCO Burst AM/PM/FM/ASK/FSK/PSK Modulation DDS Generator Function Source Generator Adopt ABS shell with table type design. Use 100-240V (AC) wide voltage supply. it can save 20 sets user-set parameters and can be loaded at any time. Provide powerful waveform editing PC software. Users can download arbitrary waveform to this instrument after edit through PC program which is included in user . Duty-cycle of each channel can be adjusted independently 0.01%-99.99%, adjusting resolution is 0.01%. Adopt Direct Digital Synthesizer (DDS) technology and provide stable, precise, pure and low distortion signals. voltage controlling frequency, voltage controlling amplitude, voltage controlling offset, voltage controlling duty cycle and PWM modulations. support waveform copy and state copy between channels. it has 2 coupling measure modes including coupling and AC coupling. This design can solve inaccuracy problem of AC coupling. -12V+12V Offset function. Resolution 0.001V. 2.4 inch TFT color LCD with 320*240 resolution, simultaneously display parameters and graphics of CH1 and CH2. Adopt MagicPulse Technology, Low Jitter(RMS)<200ps. Sine, (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, CMOS(012V), Four channels TTL, Exponential Rise, Exponential Fall, Noise, ECG, etc. AM, , PM, ASK, FSK and PSK modulations. instrument uses 14-bit high-speed D/A converter chip (5Vpp output quantization error is less than 1mV), 300MSa/s sample rate, 14bits vertical resolution. it can 4 properties of signals including frequency, amplitude, offset and duty cycle; It has Linear and Logarithm two types; 0.01S999.99S time; , Down and roundtrip directions. all channels can work more than 60 seconds when load is short-circuited. Min amplitude resolution can be to 1mV. Amplitude is 1mV25Vpp. there has Manual Trigger, internal CH2 Trigger, and External Trigger for your options. It can output 11048575 pulse trains. all functions can be controlled by PC program and communication protocol is open for secondary development. Precisely adjust phases of two channels. Precision can be 0.01°. Support two or more signal generators connected to achieve multi-channel output, maximum support 16-channel synchronous output, phase between each channel can be adjusted. Enable to store 64 arbitrary waveform data files, each one of waveform storage depth 8192 points * 14bits; ( longer waveform storage depth, more detail waveform is saved, and signal details can be restored with high precision.) Standard dual full functional channels which are equivalent to two independent generators.

Specification:
Non-Volatile Storage: Can store 64 user-defined arbitrary waveforms, (8K 14bits) * 64
Modulation Type: AM, , PM, ASK, FSK, PSK
Minimum Pulse Width: 20ns
Output Amplitude : 1mV24Vpp(20M,60M), 1mV25Vpp(100M)
Plug & Model: Plug FY6900-20M / Plug FY6900-60M / Plug FY6900-100M / Plug FY6900-20M / Plug FY6900-60M / Plug FY6900-100M / AU Plug FY6900-60M (Optional)
Sampling Rate: 250MSa/s(20M,60M), 300MSa/s(100M)
Item Weight: 611g / 21.56oz
Item Size: 210 * 195 * 75mm / 8.27 * 7.68 * 2.96in (L*W*H)
Material: ABS
Package Size: 27 * 21 * 9.5cm / 10.63 * 8.27 * 3.75in
Sine: 0~20MHz(20M), 0~60MHz(60M), 0~100MHz(100M)
: AC100V~240V
Waveform Length: 8192 points * 14bits
Display: 2.4 inch (320*240), TFT color display
Vertical Resolution: 14 bits
Package Weight: 1065g / 37.51oz


Package List:
1 * Cable
1 * USB Data Cable
1 * DDS Signal Generator
2 * BNC-Clip Cable
1 * BNC-BNC Cable
