1 x Module-Dark blue

1. CNC adjustment, accurate and fast, can lower voltage, output voltage can be adjusted at will from , limit current 0-20.00a can be adjusted at will;
2. the output end is poured backward without burning;
3. The module can be set to open/close by default;
4. Multiple software protection mechanisms are available, and the protection threshold is adjustable.When the working parameters of the module exceed the protection threshold, the output will be automatically closed.
5. Using synchronous rectification technology, the conversion efficiency is high: the efficiency is more than 90%. Increase heat sink, install fan, strengthen heat dissipation.

Type: Logic ICs
Application: Computer
is_customized: Yes

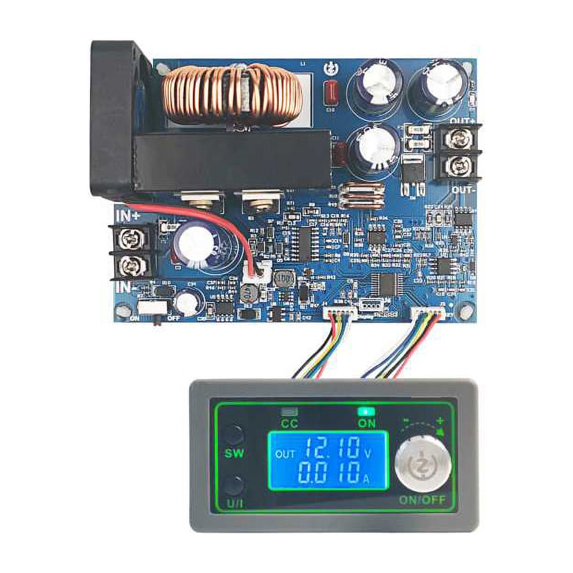

model:WZ5005L
display:LCD
Input voltage range:6-55.00V
Input voltage resolution:0.01V
Output voltage range:0-50.00V
Output voltage resolution:0.01V
Output current range:0-20.00A
Output current resolution:0.01A
Output power range:0-1000W
Input voltage accuracy:+/-(1%+5)
Output voltage accuracy:+/-(0.3%+5)
Output current accuracy:+/-(0.5%+5)
Typical value of output ripple:150mV value
Normal operating temperature range:-10Celsius-40Celsius
Capacity measurement range:0-999.9AH
Statistical error of capacity energy: +/-2%
Statistical time range:0-100 hour
Depressurization mode:differential pressure greater than 0.05%+1V
The weight of nude: 200g
Soft start: Yes
Protection mechanism:
Input undervoltage protection (5.8-50v adjustable, default 5.8v)
Output overvoltage protection (0-51.00v adjustable, default 51V)
Output over-current protection (0-20.10a adjustable, default 20.10a)
Timeout protection (0 - 100h adjustable, off by default)
Over capacity protection (0 - 999.9ah adjustable, off by default)
colour:Dark blue
Material:PCB
size:106 x 76 x 40mm

Package Contents:
1 x Module

Only the above package content, other products are not included.
